Exemple de projet d'assainissement


Bassins élémentaires

Retour

Surf. totale

Surf. imper.

Longueur

Pente

coef. C

Débit brut

coef. m

Débit Corr.

BV.13

20 ans

2300

2100

72

1.79

0.913

0.147

1.125

0.166

BV.10

20 ans

3800

3400

87

1.49

0.895

0.202

1.154

0.233

BV.11

20 ans

2400

2200

47

2.21

0.917

0.163

1.353

0.220

BV.8

20 ans

6900

6200

166

1.12

0.899

0.299

1.000

0.299

BV.7

20 ans

5600

5000

95

1.35

0.893

0.266

1.206

0.320

BV.9

20 ans

5800

5200

102

1.30

0.897

0.271

1.179

0.320

BV.12

20 ans

5900

5400

83

1.45

0.915

0.291

1.288

0.375

BV.2

20 ans

4300

3900

93

2.11

0.907

0.250

1.152

0.288

BV.1

20 ans

3200

2900

77

1.52

0.906

0.180

1.172

0.211

BV.6

20 ans

4100

3700

78

2.09

0.902

0.239

1.226

0.293

BV.5

20 ans

3900

3500

107

1.40

0.897

0.203

1.066

0.217

BV.3

20 ans

3900

3500

101

2.22

0.897

0.232

1.091

0.254

BV.4

20 ans

3800

3400

88

2.52

0.895

0.235

1.149

0.270

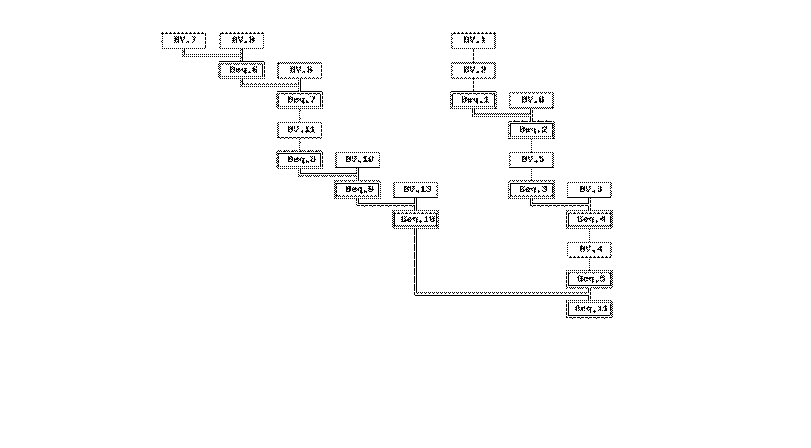

Assemblages (bassins équivalents)

Assemblage

Retour

Surf.

Long.

Pente

coef. C

Débit brut

coef. m

Débit Corr.

Type de calcul

Beq.6

BV.7 // BV.9

20 ans

11400

102

1.33

0.895

0.462

1.355

0.627

CALCUL

Beq.7

Beq.6 // BV.8

20 ans

18300

108

1.26

0.896

0.635

1.458

0.925

SOMME

Beq.8

Beq.7 + BV.11

20 ans

20700

155

1.47

0.899

0.764

1.289

0.986

CALCUL

Beq.9

Beq.8 // BV.10

20 ans

24500

155

1.47

0.898

0.872

1.335

1.165

CALCUL

Beq.10

Beq.9 // BV.13

20 ans

26800

155

1.51

0.899

0.945

1.360

1.285

CALCUL

Beq.1

BV.1 + BV.2

20 ans

7500

170

1.81

0.907

0.370

1.008

0.373

CALCUL

Beq.2

Beq.1 // BV.6

20 ans

11600

170

1.93

0.905

0.530

1.102

0.584

CALCUL

Beq.3

Beq.2 + BV.5

20 ans

15500

277

1.70

0.903

0.639

0.957

0.612

CALCUL

Beq.4

Beq.3 // BV.3

20 ans

19400

277

1.85

0.902

0.780

1.002

0.782

CALCUL

Beq.5

Beq.4 + BV.4

20 ans

23200

365

1.98

0.901

0.915

0.928

0.849

CALCUL

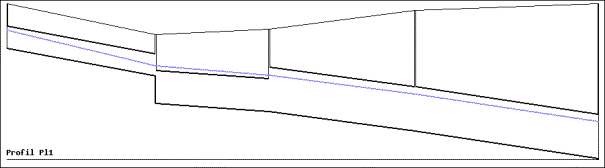

Profil Pl1

Radier

Long. Tuyau

Diam. Tuyau

Type Tuyau

Pente Tuyau

Bass. évacué

Débit

Débit PS

Pente motr.

Vites. max.

Vites. à 10%

Cote piézo.

Cote TN

Rd1

58.20

-----

-----

-----

-----

BV.1

0.211

-----

-----

-----

-----

58.51

59.00

Rd2

57.70
57.20

45.40

400

Bet

1.10

Beq.1

0.373

0.211

1.42

1.8

0.93

57.87

58.44

Rd3

57.05

34.80

600

Bet

0.43

Beq.2

0.584

0.373

0.48

1.4

0.73

57.70

58.54

Rd.4

56.70

44.40

800

Bet

0.79

Beq.4

0.782

1.039

0.79

2.1

1.14

57.35

58.88

Rd5

56.20

56.00

800

Bet

0.89

Beq.5

0.849

1.106

0.89

2.4

1.21

56.85

59.01

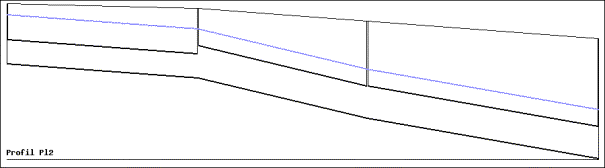

Profil Pl2

Radier

Long. Tuyau

Diam. Tuyau

Type Tuyau

Pente Tuyau

Bass. évacué

Débit

Débit PS

Pente motr.

Vites. max.

Vites. à 10%

Cote piézo.

Cote TN

Rd6

55.14

-----

-----

-----

-----

BV.7

0.320

-----

-----

-----

-----

56.34

56.64

Rd7

54.80

42.40

600

Bet

0.80

Beq.7

0.925

0.481

0.80

1.8

0.94

56.00

56.52

Rd8

53.80

37.50

800

Bet

2.67

Beq.8

0.986

1.911

2.67

3.8

2.09

55.00

56.20

Rd9

52.80

51.10

800

Bet

1.96

Beq.10

1.285

1.637

1.96

3.4

1.79

54.00

55.76
